| KEY SPECS |
|
| ENGINE POWER |
22 HPÂ Â 16.4 KW |
| OIL CHANGE |
NO-TOOLS OIL DRAIN HOSE WITH REPLACEABLE FILTER |
| ENGINE MANUFACTURER/MODEL |
44J6 CYCLONIC |
| TRANSAXLE TYPE |
K46 HYDROSTATIC INTEGRATED WITH TRANSAXLE |
| TRANSAXLE CONTROL |
TWIN TOUCHâ„¢ PEDALS |
| REAR TIRES |
20×10-8 |
| LIFT SYSTEM TYPE |
FOOT PEDAL WITH OPTIONAL ADJUSTABLE SPRING ASSIST KIT |
| CUTTING WIDTH |
ACCEL DEEP™ MOWER DECK, 42 IN.  107 CM |
| U.S. WARRANTY |
4 YEAR/300 HOUR BUMPER-TO-BUMPER* (*TERM LIMITED TO YEARS OR HOURS USED, WHICHEVER COMES FIRST, AND VARIES BY MODEL. SEE THE LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT AT JOHNDEERE.COM OR JOHNDEERE.CA/TUWARRANTY FOR DETAILS.) |

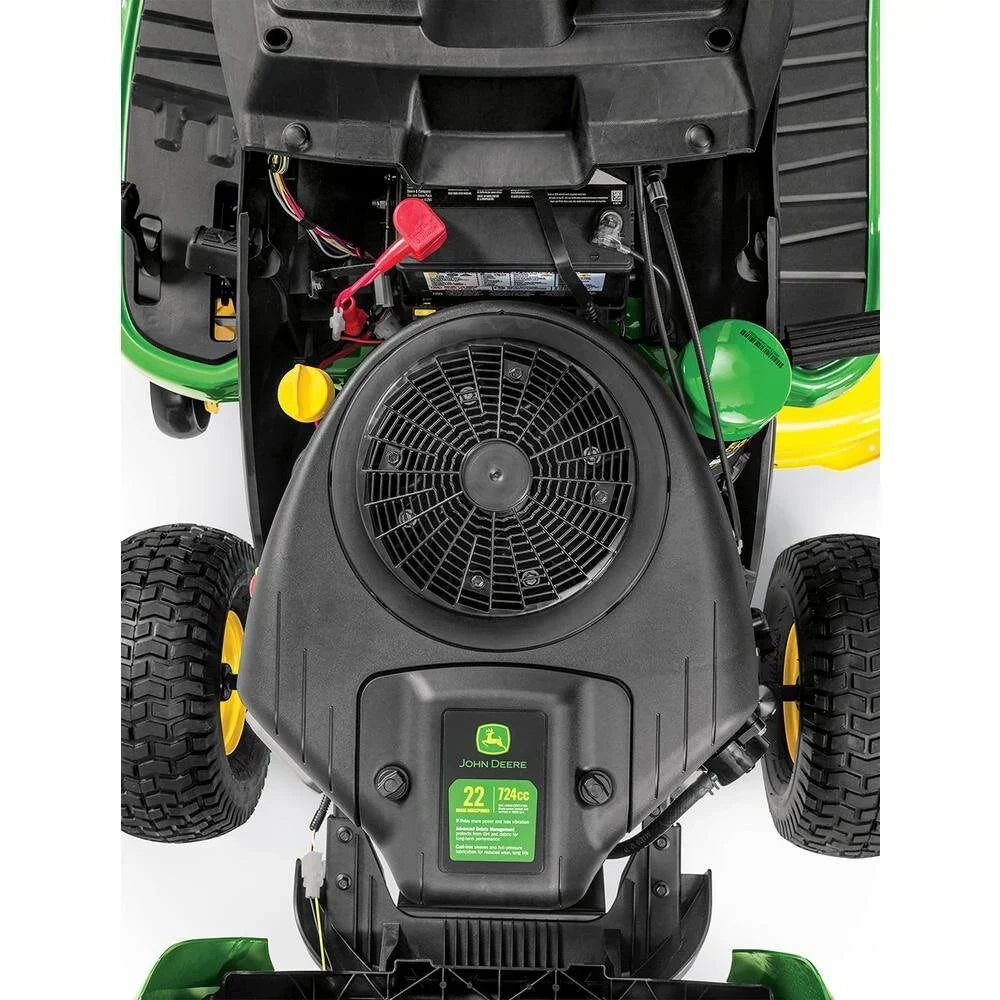

| ENGINE |
|
| POWER |
22 HPÂ Â 16.4 KW |
| DISPLACEMENT |
44.2 CU IN.  724 CC |
| MANUFACTURER/MODEL |
44J6 CYCLONIC |
| TYPE |
OVERHEAD VALVE, FULL-PRESSURE LUBE, OIL FILTER |
| CYLINDERS |
V-TWIN, CAST-IRON LINERS |
| GOVERNOR |
MECHANICAL |
| CHOKE/SPEED CONTROL |
SEPARATE LEVERS, AUTOMATIC CHOKE RETURN |
| COOLING METHOD |
AIR |
| AIR CLEANER |
DRY, REPLACEABLE |
| OIL CHANGE |
NO-TOOLS OIL DRAIN HOSE WITH REPLACEABLE FILTER |
| FUEL SYSTEM |
|
| TYPE |
GASOLINE |
| FUEL DELIVERY |
PULSE PUMP, CARBURETOR |
| FUEL GAUGE |
GAUGE ON DASH |
| FUEL TANK LOCATION |
REAR |
| FUEL FILL OPENING |
ON LEFT FENDER, 3 IN.  7.6 CM |
| FUEL TANK CAPACITY |
3.3 U.S. GAL.  12.5 L |
| ELECTRICAL SYSTEM |
|
| BATTERY |
12 VÂ Â 340 CCA |
| CHARGING SYSTEM |
FLYWHEEL ALTERNATOR, REGULATED, 14 AMP |
| ENGINE STARTER |
BENDIX |
| HOUR METER |
YES |
| HEADLIGHTS |
TWO STANDARD, INCANDESCENT, 27 W |
| TAILLIGHTS OR REFLECTOR |
NO |
| BACKUP LIGHTS |
NO |
| REAR WORK LIGHTS |
NO |
| 12-V OUTLET |
OPTIONAL |
| TRANSAXLE |
|
| TYPE |
K46 HYDROSTATIC INTEGRATED WITH TRANSAXLE |
| CONTROL |
TWIN TOUCHâ„¢ PEDALS |
| CRUISE CONTROL |
YES, BUTTON ON DASH |
| OIL COOLER |
FINS AND FAN ON TRANSAXLE |
| OIL FILTER |
INTERNAL, NOT REPLACEABLE |
| DIFFERENTIAL LOCK |
NO |
| FORWARD SPEED |
0-5.5 MPHÂ Â 0-8.9 KM/H |
| REVERSE SPEED |
0-4 MPHÂ Â 0-6.4 KM/H |
| BRAKES |
INTERNAL WET DISC |
| CHASSIS |
|
| FRAME |
WELDED HEAVY-DUTY |
| PRIMER/PAINT |
E-COAT/POWDER |
| WEIGHT BRACKET |
STANDARD REAR, OPTIONAL FRONT |
| RECEIVER HITCH |
NO |
| FRONT AXLE |
CAST IRON FRONT AXLE, FRONT WHEEL BALL BEARINGS |
| SPINDLE BUSHINGS |
NO |
| FRONT TIRES |
15×6-6 |
| REAR TIRES |
20×10-8 |
| HOOD MATERIAL |
FULLY ENCLOSED, MOLDED-IN COLOR MATERIAL REDUCES SOUND, WILL NOT RUST OR DENT |
| FENDER DECK MATERIAL |
STAMPED STEEL |
| FLOOR MATS |
SURE-GRIP RUBBER |
| STORAGE |
YES, UNDER SEAT AND COVERED TOOLBOX |
| SERVICE INTERVAL DECAL |
YES |
| FENDER HANDLES/GRIPS |
NO |
| CUP HOLDER |
YES |
| EQUIPMENT MOUNTING |
YES, HEAVY DUTY |
| MAXIMUM TOWING CAPACITY |
600 LBÂ Â 272 KG |
| STEERING |
|
| TYPE |
MANUAL, SECTOR AND PINION |
| FOUR-WHEEL STEER |
NOT AVAILABLE ON THIS MODEL |
| STEERING WHEEL |
LARGE, 14 IN.  35.6 CM |
| TILT STEERING WHEEL |
NO |
| TURNING RADIUS |
16 IN.  40.6 CM |
| UNCUT CIRCLE RADIUS |
26 IN.  66 CM |
| SEAT |
|
| TYPE |
OPEN-BACK DESIGN WITH GRASP |
| SEAT BACK HEIGHT |
15 IN.  38 CM |
| ARMRESTS |
NO |
| FORE-AFT ADJUSTMENT |
WHILE SEATED, BALL BEARING SLIDE RAIL, 15-POSITION, 6.6 IN.  17 CM |
| SEAT SUSPENSION |
TILT, TWO COIL SPRINGS, THREE-POSITION NO-TOOLS ADJUSTMENT FOR OPERATOR WEIGHT |
| LIFT SYSTEM |
|
| TYPE |
FOOT PEDAL WITH OPTIONAL ADJUSTABLE SPRING ASSIST KIT |
| HYDRAULIC OUTLETS |
NO |
| MOWER CUT HEIGHT |
13 POSITIONS, 1-4 IN.  2.5-10.2 CM |
| CUT HEIGHT INCREMENTS |
0.25 IN.  0.64 CM |
| PRESET CUT HEIGHT |
YES |
| MOWER DECK |
|
| TYPE |
SIDE DISCHARGE |
| CUTTING WIDTH |
ACCEL DEEP™ MOWER DECK, 42 IN.  107 CM |
| CONSTRUCTION |
STAMPED STEEL DECK SHELL |
| MOWER DECK MATERIAL |
12 GAUGE  0.105 IN.  2.7 MM |
| MOWER WASH PORT |
YES |
| MOWER DRIVE SYSTEM |
ELECTRIC POWER TAKE-OFF (PTO) CLUTCH, IN-LINE BELT |
| MOWER WHEELS |
TWO |
| MOWER WHEEL ADJUSTMENT |
FOUR-POSITION, TOOL REQUIRED |
| MOWER LEVEL ADJUSTMENT |
EXACT ADJUST PORTS AND ONBOARD DECK-LEVELING GAUGE |
| MOWER ATTACHABILITY |
|
| TYPE |
SLIDE UNDER TRACTOR |
| FRONT DRAFT ARMS |
ATTACHED WITH SPRING PINS AT TWO POINTS |
| REAR DRAFT ARMS |
TWO PINS AND SPRING CLIPS |
| MOWER WHEELS ROTATE |
NO |
| DRIVE SYSTEM |
SINGLE BELT |
| SAFETY |
|
| MEETS ANSI STANDARD |
YES |
| MEETS OPEI STANDARD |
YES |
| BACKUP PROTECTION |
REVERSE IMPLEMENT OPTION (RIO) |
| SAFETY VIDEO |
YES |
| BUYER’S NOTES |
|
| NOTES |
FULLY ENCLOSED, MOLDED-IN COLOR MATERIAL REDUCES SOUND, WILL NOT RUST OR DENTÂ Â Â DURABLE E-COAT PRIMER AND POWDER-PAINT FINISH |
| WARRANTY |
4 YEAR/300 HOUR BUMPER-TO-BUMPER* (*TERM LIMITED TO YEARS OR HOURS USED, WHICHEVER COMES FIRST, AND VARIES BY MODEL. SEE THE LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT AT JOHNDEERE.COM OR JOHNDEERE.CA/TUWARRANTY FOR DETAILS.) |
| OPTIONAL EQUIPMENT |
|
| MOWERS |
42A (STANDARD) |
| REAR BAGGER |
2-BAG, 7 BUÂ Â 247 L |
| MULCHING SYSTEM |
YES, MULCHCONTROLâ„¢ |
| FRONT THATCHER |
38, 46, 54 IN.  96.5, 116.8, 137.2 CM |
| FRONT BLADE |
44 IN.  111.8 CM |
| SNOW BLOWER |
TWO-STAGE, 44 IN.  111.8 CM |
| SPRAYER |
TOW-BEHIND, 15 U.S. GAL.  56.8 L  TOW-BEHIND, 25 U.S. GAL.  94.6 L  MOUNTED, 25 U.S. GAL. |
| SPREADER |
TOW-BEHIND, 125 LBÂ Â 57.7 KGÂ Â TOW-BEHIND, 175 LBÂ Â 79.4 KGÂ Â MOUNTED 125 LB |
| FRONT BUMPER |
STYLED BUMPER OPTION |
| BRUSH GUARD |
YES |
| WEATHER PROTECTION |
WEATHER ENCLOSURE |
| SUN CANOPY |
YES |
| BUCKET HOLDER |
YES, DOUBLE BUCKET |
| GRASS STRIPING |
LAWN STRIPING KIT |
| TRACTOR SHOVEL |
40 IN.  101.6 CM |
| TOW-BEHIND TOOLS |
16 |
| DIMENSIONS |
|
| HEIGHT |
46.1 IN.  1171 MM |
| OVERALL LENGTH |
71.5 IN.  1817 MM |
| WHEELBASE |
49.4 IN.  1255 MM |
| WIDTH WITH MOWER |
50.5 IN.  1283 MM |
| WIDTH WITH MOWER (DEFLECTOR RAISED FOR STORAGE) |
51.2 IN.  1300 MM |
| WIDTH WITHOUT MOWER |
38 IN.  964 MM |
| WEIGHT |
MOWER, NO FUEL: 542 LBÂ Â 246 KG |
